One of the most valuable things to do for ourselves, future generations and all life on earth, in this climate crisis, is to find ways to capture rainwater on the land to soak into the groundwater and aquifers as it is meant to and regenerate the life of our planet.
“Water Retention Landscapes are the healing impulse urgently required by the Earth and all her creatures. They can and must arise in every place where people regain the courage, strength and also of course, the knowledge needed to create them. (…) We must not get accustomed to a state where something that is actually self-evident appears to us as an unrealistic utopia. A world in which all people have free access to sufficient water, energy and food is completely feasible.” (Bernd Mueller)
“We humans have the knowledge of how to transform deserts and semi-deserts back into living landscapes traversed by fresh spring water streams. In most cases desertification isn’t a natural phenomenon but the result of incorrect water management on a global scale. Deserts don’t arise because of a lack of rain, but because humanity treats water in the wrong way.” Source Tamera.org
Water is the missing link for reversing climate change.
It’s possible to achieve water autonomy in our region and everywhere in the world.
When restoring the natural water cycles, we take the first, indispensable step for restoring ecosystems and lay the foundations for self-sufficiency.
Wherever you are, make sure rainwater doesn’t run off, but instead filters into the aquifers.” Source Tamera.org
The new gravel path is nearly finished and runs from one end of the garden to the other, the boulders have been placed, and four bird houses hung: three have larger holes for Bluebirds or Swallows (most likely violet green), and one is for smaller birds (Chickadees or Nuthatches) (see below). SRV member Mike Nelson made the houses and worked with Chas to install them.
Plant labels for each of the 27 plant species used in the garden are being made and will be installed soon, so visitors using the trail will be able to identify the different plants growing there. There are 24 different native plant species and 3 non-natives.
An irrigation system is being installed by the RCC grounds crew with the help of project manager Chas Rogers, so we won’t have to worry about losing any of the plants while they are getting established. In two or three years, when they have good root systems put down most of the plants will survive our dry summers with little additional water.
Be sure to mark your calendar for Thursday, April 19th, the day RCC holds it’s Earth Day Celebration from 12 – 2 pm. Sustainable Rogue Valley will have an information table and Chas will be giving tours of the RainGarden!
The following is a Press Release put out by Rogue Community College about the project Sustainable Rogue Valley is doing in collaboration with them on the Grants Pass Redwood Campus.
Grants Pass-Rogue Community College (RCC) and Sustainable Rogue Valley are working together to complete the demonstration Rain Garden and Bioswale on the RCC Redwood Campus to show how to help protect stormwater pollution from fouling freshwater ecosystems.
The demonstration project at the RCC Redwood Campus is located next to the Josephine Building at 3345 Redwood Highway in Grants Pass. Volunteers are needed to help complete the project. Anyone who wants to get involved and experience this project firsthand is invited to join the Sustainable Rogue Valley group at the Josephine Building parking lot on:
Friday, Feb. 16, from 10 a.m. to 2 p.m., to complete wetland and flower planting.
Friday, March 16, from 10 a.m. to 2 p.m., to construct a trail designed to encourage people to walk and discover the project.
Earth Day, Thursday, April 19, at noon and 1 p.m., there will be tours of the site.
RCC’s demonstration rain garden collects rainwater runoff from impervious landscapes such as parking lots and roads and filters the water through a bioswale using unique wetland plants and organic matter that acts as a sponge that holds and breaks down contaminants and pollutants while letting water seep into the ground or enter natural drainage systems. With a healthy and varied plant community, rain gardens can produce a pleasing environment while providing a vital function in the watershed.
Signs are posted on-site to explain the project and its goals, the pattern of runoff, types of wetland plants, and how bioswales improve watershed health. “We hope this demonstration site will inspire others to build rain gardens and bioswales to improve water quality and beautify the landscape,” said Charles Rogers, the RCC science instructor managing the project.
This project has been funded by the Oregon Watershed Enhancement Board to construct the drainage basin and filling it with mulch. The local Williams Creek Watershed Council completed that stage during the summer of 2017. Additional funding was provided by the RCC Foundation and Ashland Food Co-op for plants and materials to complete the rain garden.
Sustainable Rogue Valley is a local group dedicated to fostering sustainable practices through community service and education.
Individuals and local groups interested in getting involved in planting, shaping and maintaining this active demonstration project can visit www.sustainableroguevalley.org for more information. If you would like to help with completing the rain garden, contact Rogers at email@example.com.
Rogue Community College and Sustainable Rogue Valley are working together to complete the demonstration Raingarden and Bioswale on the Redwood Campus. This project has been funded by the Oregon Watershed Enhancement Board to construct the initial work of digging the drainage basin and filling with mulch and was completed during the summer of 2017 by the local Williams Creek Watershed Council.
Volunteers are needed to help complete the project. Sustainable Rogue Valley is a local concerned group working to find solutions to making our world a more livable place for all. We offer community service projects and education about bioswales, raingardens, and other sustainable ideas. Individuals and local groups interested in getting involved in planting, shaping, and maintaining this active demonstration project can visit our website, sustainableroguevalley.org, for more information. If you would like to help with completing the Raingarden contact the Project Manager, Chas Rogers, at firstname.lastname@example.org.
Volunteer opportunities are scheduled for anyone to get involved. Students are welcome and encouraged to experience this project firsthand. This winter we will be completing our wetland and flower planting on February 16th. On March 16th we will construct our trail designed to encourage people to walk and discover the project. On Earth Day at Redwood Campus, April 19th we will have tours of the site and plan to install more signs describing the project. Please feel free to show up at the Josephine Building parking lot between 10 am and 2 pm on Feb 16th or March 16th.
Raingardens collect rainwater runoff in basins and ponds encouraging water to slow down and filter through plant roots and seep into the ground. With a healthy and varied plant community, it can produce a pleasing environment while providing a vital function in the watershed. The RCC Raingarden collects runoff from the campus and filters it through a bioswale.
Bioswales are made to collect rainwater runoff and filter through wetlands where unique wetland plants are growing. These plants can help break down pollutants such as oil from parking lots and roadways as they filter into the ground during runoff. Bioswales contain organic matter that acts as a sponge along with plants that hold and break down contaminants from impervious landscapes such as parking lots and roads.
The wetlands on RCC campus collect runoff, filter and clean contaminants from several parking lots, letting water seep into the ground or enter the natural drainage systems. Signs posted onsite help explain the project and its goals, showing the pattern of runoff, types of wetland plants growing, and how this could help clean water and improve watershed health. We hope this demonstration site will inspire others to build Raingardens and Bioswales to improve water quality and beautify the landscape.
Here are pictures taken this summer and fall of the progress on the Project. Chas Rogers has done an amazing job – not only writing the grants, but coordinating the work and DOING a huge amount himself! We just had a big planting day before Thanksgiving and LOTS of folks showed up – RCC students as well as SRV members!
There is more to come (big boulders and more plants in early 2018), so check back from time to time to watch the progress! And go to RCC to check it out in person!
The following article was just posted by Utne – an online and paper magazine. Sustainable Rogue Valley is presently in the midst of creating a large demonstration Rain Garden and Bioswale at Rogue Community College Campus in Grants Pass, OR., and created and care for a small version at the Josephine County Fairgrounds in 2016.
Communities across the country are devising creative ways to make water conservation work.
By Cynthia Barnett, from Orion
On a winter’s day in Seattle, a leaden monotony hangs over the Central Business District, dispiriting to this part of downtown. Contrary to reputation, the urban pallor is not born of rain, which falls almost imperceptibly from silvery clouds that match the nearby waters of Puget Sound. Rather, the gloom rises from the cement hardscape. The busy streets are paved dark gray, the wide sidewalks beside them light gray. The skyscrapers rise in shades of gray. The hulking freeways, ramps, and overpasses: gray. The monorail track and its elephantine pillars: gray.
Trudge the sidewalks northwest to Seattle’s Belltown neighborhood, hang a left on Vine Street toward the sound, and a 10-foot-tall, bright blue rain tank pops from the dullness, tipped whimsically toward a red brick office building. Atop the tank, green pipes in the shape of fingers and a thumb reach out, the stretched index finger connected to a downspout from the rooftop. Rainwater flows from roof to finger to palm to thumb, from which it pours to a series of descending basins built between the sidewalk and the street. They, in turn, cascade to landscaped wedges growing thick with woodland plants. For two blocks, as Vine slopes toward the sound, water trickles down a runnel and through street-side planters, shining stones, and stepped terraces, enlivening the roadway with greenery, public sculpture, and the sounds of falling water.
The project, called Growing Vine Street, began as a small, water conservation effort among residents and property owners to turn their stretch of a former industrial neighborhood into an urban watershed. Twenty years later, it is a big part of the answer to the largest single source of pollution fouling Puget Sound and most of the major bays and freshwater ecosystems of the United States—stormwater.
The gray shellac of a city repels more than the imagination. When rain flows along streets, parking lots, and rooftops rather than percolating into the ground, it soaks up toxic metals, oil and grease, pesticides and herbicides, feces, and every other scourge that can make its way to a gutter. This runoff impairs virtually every urban creek, stream, and river in Washington. It makes Pacific killer whales some of the most PCB-contaminated mammals on the planet. It’s driving two species of salmon extinct, and kills a high percentage of healthy coho within hours of swimming into Seattle’s creeks, before they’ve had a chance to spawn.
Returning some of nature’s hydrology to the cityscape can make an enormous difference—or could—as more individuals, businesses, and neighborhoods remake their bit of the terra firma. Washington State University scientists have found that streets with rain gardens clean up 90 percent or more of the pollutants flowing through on their way to the sound. Green roofs reduce runoff between 50 and 85 percent and can drop a building’s energy costs by nearly a third. Cisterns like the one on Vine Street solve two problems, reducing runoff and capturing water for outdoor irrigation—which in summer can account for half a city’s freshwater demand.

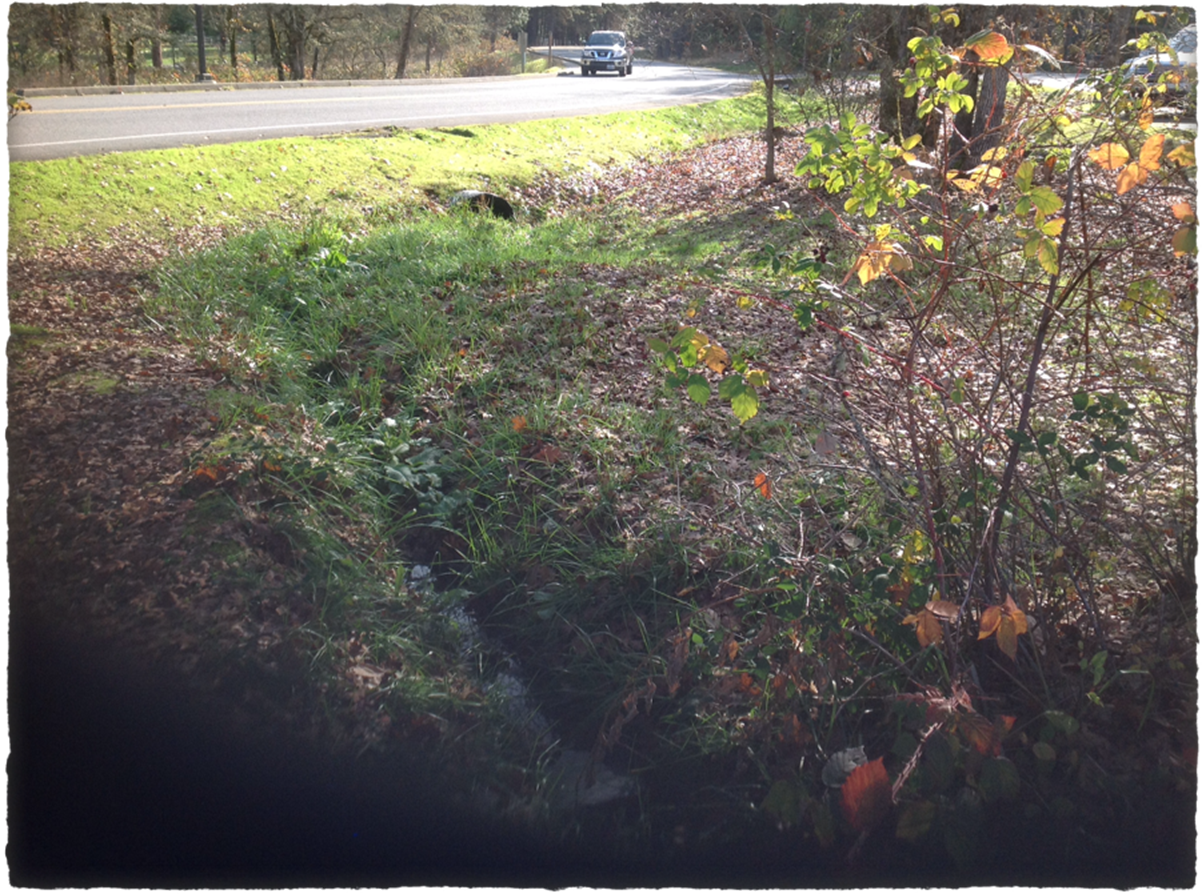

Sustainable Rogue Valley, in conjunction with other funders, is planning to construct Raingardens and Bioswales on the Rogue Community College property in Grants Pass, Oregon. Raingardens are made to collect rainwater in ponds and maintain a healthy plant community while encouraging water to slow down and filter into the ground. They produce a pleasing environment while providing a vital function in the watershed. Plant communities can be focused on butterfly migration, bees and insects, as well as firewise resistant plants.
Bioswales are made to collect rainwater runoff and filter through wetlands where unique wetland plants are growing. These plants will help break down pollutants such as oil from parking lots and roadways as they filter into the ground during runoff. Bioswales contain organic matter that acts as a sponge along with plants that hold and break down contaminants from impervious landscapes such as parking lots and roads.
The wetlands on RCC campus will collect runoff, filter and clean contaminants, and send the water downstream or into the ground to enter the natural drainage systems. There are several wetland sites planned in this project that will receive runoff in a series of bioswales designed around the existing culverts and drainage patterns. Signs posted onsite will explain the project and its goals, showing the pattern of runoff, types of wetland plants growing, and how this could help clean water and improve watershed health. We hope this demonstration site will inspire others to build Raingardens and Bioswales to improve water quality and beautify the landscape.
Sustainable Rogue Valley is an affinity group to the Grants Pass Universal Universalists, and is associated with Rogue Community College Faculty and Facilities Department. SRV has received funding from The Ashland Food Coop and is also applying for restoration grants from Oregon Watershed Enhancement Board through the Rogue Valley Small Grant Team. Support is sought from Rogue River Watershed Council as well as Rogue Basin Partnership, and the Rogue Community College Green Team. This will be a collaborative effort to bring communities together to show how sustainable practices can benefit everyone.
Why the rise of green energy makes utility companies nervous.
From the June 2015 New Yorker Magazine article by Bill McKibben
Mark and Sara Borkowski live with their two young daughters in a century-old, fifteen-hundred-square-foot house in Rutland, Vermont. Mark drives a school bus, and Sara works as a special-ed teacher; the cost of heating and cooling their house through the year consumes a large fraction of their combined income. Last summer, however, persuaded by Green Mountain Power, the main electric utility in Vermont, the Borkowskis decided to give their home an energy makeover. In the course of several days, coördinated teams of contractors stuffed the house with new insulation, put in a heat pump for the hot water, and installed two air-source heat pumps to warm the home. They also switched all the light bulbs to L.E.D.s and put a small solar array on the slate roof of the garage.
The Borkowskis paid for the improvements, but the utility financed the charges through their electric bill, which fell the very first month. Before the makeover, from October of 2013 to January of 2014, the Borkowskis used thirty-four hundred and eleven kilowatt-hours of electricity and three hundred and twenty-five gallons of fuel oil. From October of 2014 to January of 2015, they used twenty-eight hundred and fifty-six kilowatt-hours of electricity and no oil at all. President Obama has announced that by 2025 he wants the United States to reduce its total carbon footprint by up to twenty-eight per cent of 2005 levels. The Borkowskis reduced the footprint of their house by eighty-eight per cent in a matter of days, and at no net cost.
The following is a blog post from The Holistic Garden blog by Barb Allen:
Last fall we built a rain garden that collects rainwater that runs from the roof and driveway. Normally this water would have run down the slope behind the house into a creek and off the property. Now it fills up the rain garden and soaks into the ground in a few hours, replenishing the groundwater that feeds our well. In the midst of a serious drought that’s pretty comforting. It worked so well, we’re creating mini-rain gardens and swales all over the property now to slow down the flow and allow it to soak into the soil.
I have a half acre of garden that I water through the dry summer months, so it would be hard to store enough water in a cistern or in plastic tanks to take care of 4 – 5 months of watering. And the house is down slope from the garden so I couldn’t figure out a way to collect it in tanks and get it uphill to the garden. I chewed on that problem for a couple years. Then, in the process of looking for answers online, I ran across the concept of “rain gardens”, and the fact that they hold water, allowing it to soak into the soil and replenish the groundwater. Around the same time I came across a story by Geoffrey Lawton of Permaculture fame, about a property where they put in a series of swales running down a slope. After a couple years of collecting rainwater in the swales, a spring popped out on the hillside! Suddenly the idea of saving rain water in the GROUND seemed like the simplest and most natural solution!
Rain gardens were created originally for a more urban/suburban setting, as one solution to the problem of the massive amounts of rainwater that flow from roofs and driveways, patios and streets into storm drains and from there into local streams and rivers, carrying all sorts of nasty pollutants picked up along the way. Before humans created so much impervious surface – rain used to soak into the ground in forests, meadows and prairies – continually recharging the aquifers and groundwater which in turn fed streams and rivers. Now we are using up the water in the these aquifers faster than it is being replaced. Much faster. The pollution-filled water that runs off the hard surfaces and into streams and rivers is causing un-natural flooding and all sorts of serious problems for fish and wildlife.
There are campaigns all across America, Australia and the UK, working to encourage homeowners and businesses to build rain gardens to deal with this runoff from impermeable surfaces. I read of at least one area that is now requiring any new home or business being built, to include a rain garden big enough to handle all the rain water from the roof, sidewalks, driveways and parking lots.
The idea is really fairly simple. A depression is dug at the lower end of a property – or somewhere at least 10 feet from the house or building, 25 feet from a septic tank and away from underground utility lines. It is then partially re-filled with light compost, sandy loamy soil and gravel, and planted with mostly native perennial and annual plants that can take being very wet occasionally. The water from the roof is directed to the depression. Beyond that there are a number of ways that you can design one.
If you do an “Image” Search for “rain garden” online, you will see many interesting examples. Ours was created to be a decorative part of the landscape and Bryon did some artistic things with rock. Many rain gardens you will see images of, are large beds that are hard to distinguish from a normal flower bed.
The University of Wisconsin has a free manual that’s an excellent introduction to the basics of building one. You will find many resources online, including videos. Some may overwhelm and confuse you. But Wisconsin’s gives you the basics. From there you can get as creative as you want. You don’t need to bring in heavy equipment to do this, although some are built this way. Granted, moving a lot of dirt is not light, easy work. But it can be done without tractors and backhoes. If you can’t do one big enough to capture all the rainwater from your roof and driveway you can create one large enough to at least capture SOME of it. Or create a couple small ones in different parts of your property.
Two things it might help to know: These are NOT ponds. The water is meant to drain into the soil within 24 hours or less, so they are not breeding grounds for mosquitoes.
If you live in town and are not on a well, building a rain garden is simply a responsible thing to do. You will be benefiting everyone, by dealing with the results of rain falling on your impermeable surfaces and in the process helping to recharge the groundwater we all use. It’s a bit like recycling. One rain garden won’t make a big difference, but if lots of people build them, the effects can be profound. I read a story of a neighborhood that was beginning to suffer from regular flooding of the roadways. The neighbors got together and all built rain gardens on their properties and solved the problem!
We all use the groundwater. It supplies the water used to grow the food we eat, and for every aspect of our lives. Everything you eat, everything you wear, every product you use, every living plant or animal you see anywhere around you is dependent on water for its creation… fresh unpolluted water. And then there is washing, cooking, and toilets! It’s rain water that sustains much of that supply of water that is then stored in the ground ready for our use.
Rain gardens are a small sustainable way we can actually DO something to balance out the water we use.
If you have a well, rain gardens and swales are a directly important tool for making sure the groundwater that feeds your well is regularly recharged with the rain that falls on your land. It’s simple, natural and sustainable.
Building a rain garden is a way to help insure that we all have an ongoing supply of clean fresh water for all the ways we use it on into the future. You can feel good that you are doing something to mitigate the problem – not add to it! Yea…
